T6pro In-tel J4125/N4000 Win10 pro 4K mini computer
T6 PRO J4125: 6G+128G
T6 PRO N4000: 4G+64G
Product Appearance | |||||||
Type | Spec. | Standard Configuration | Optional | ||||
Product | Product Type | MINI PC, Ad Terminal Box | |||||

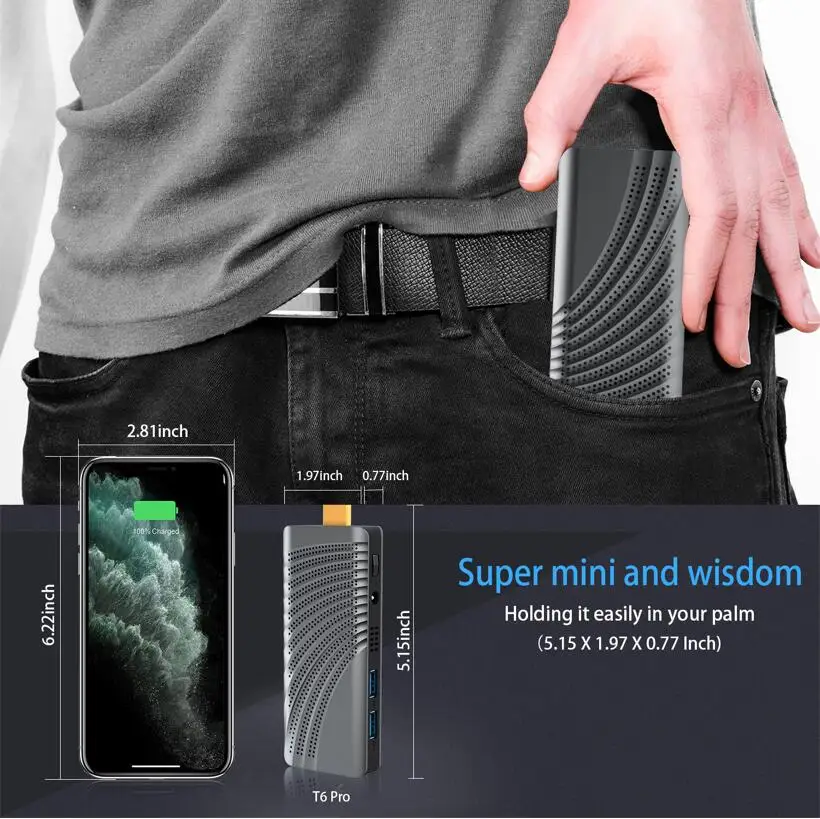

Dimension | 130mm*50mm*18mm | ||||||
Case Material | The upper shell is plastic, the middle shell and the bottom shell are metal | ||||||
Weight | Net Weight 113g,Gross Weight 274g | ||||||
System Hardware Configuration | |||||||
Type | Spec. | Description | Optional | ||||

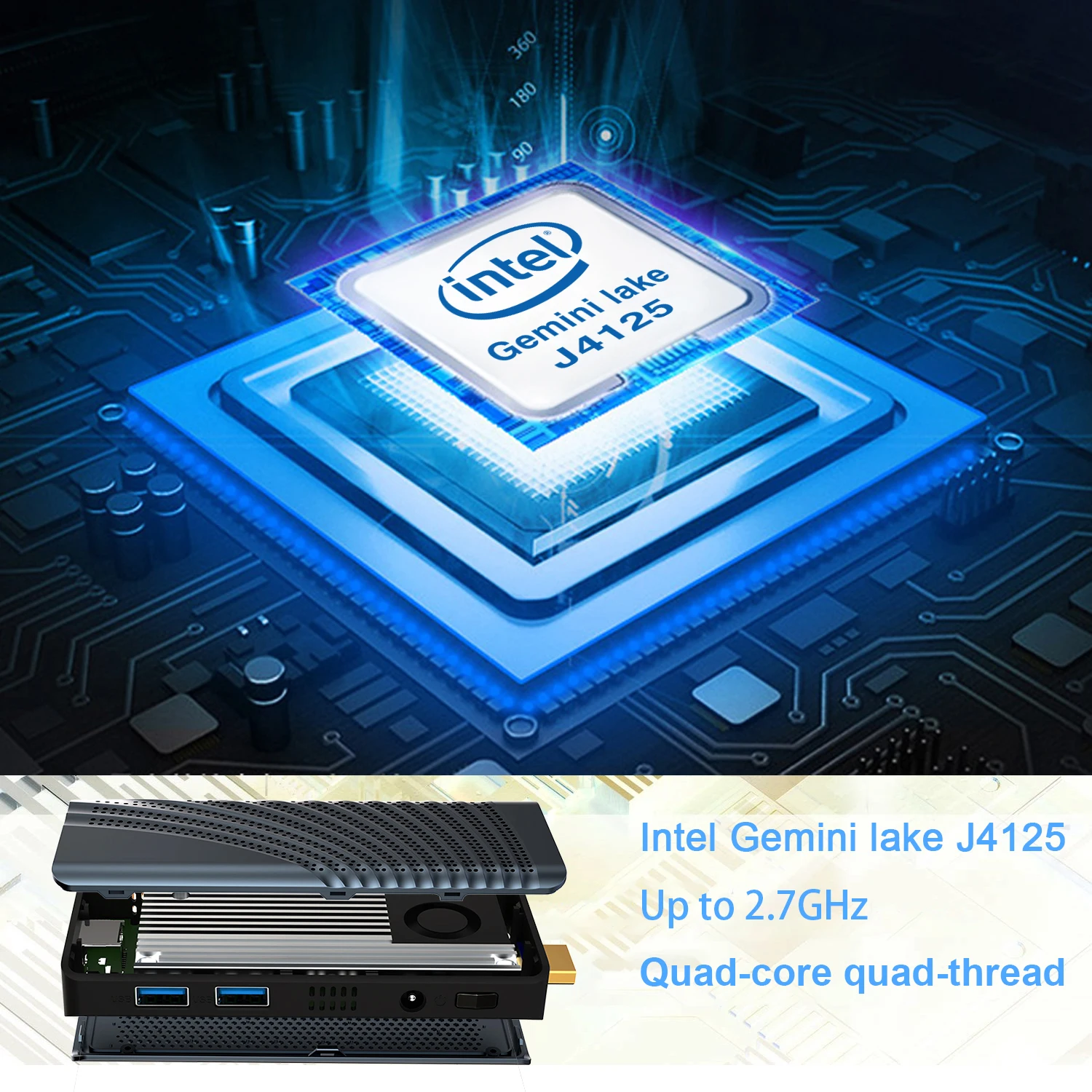

CPU | Model | In-tel J4125 | |||||
Speed | 2.0 GHz ( J4125 ) 1.5GHz(J4105 ) | ||||||
Max. Turbo Speed | 2.7GHz ( J4125 ) 2.5GHz ( J4105 ) | ||||||
Power Consumption | 10W | ||||||
Memory | Model | LPDDR4 | |||||
Capacity |
Max 6GB on Board |
||||||
Storage | EMMC | eMMC Max 128GB | |||||
SSD | No Supporting | ||||||
2.5" SSD | No Supporting | ||||||
TF Card | No Supporting | ||||||
RTC | BIOS | Real-time Clock, Time Boot | |||||
Auto Power On | BIOS | Support auto power on after electrified | |||||
Diskless Network | BIOS | Support uefi/Legacy Diskless Switch On | |||||
TPM | CPU integratesTPM | Support TPM 2.0 | |||||
Dual Display | Video Output | No Supporting | |||||
LED | State | Green light- Swith on Red light- Switch off |
|||||
Internet Connection | |||||||
Type | Spec. | Description | Optional | ||||
WIFI | Model | In-tel 7265/ 3165/ RTL8821CE on board | |||||
Protocol | IEEE 802.11 a, b/g, n, ac | ||||||
BT | Model | In-tel 7265/ 3165/ RTL8821CE on board | |||||
Protocol | Support BT 4.2 | ||||||
3G | Built-in | No | |||||
4G | Built-in | No | |||||
Ethernet | LAN1 | 10M/100M/1000M Self-adaption | |||||

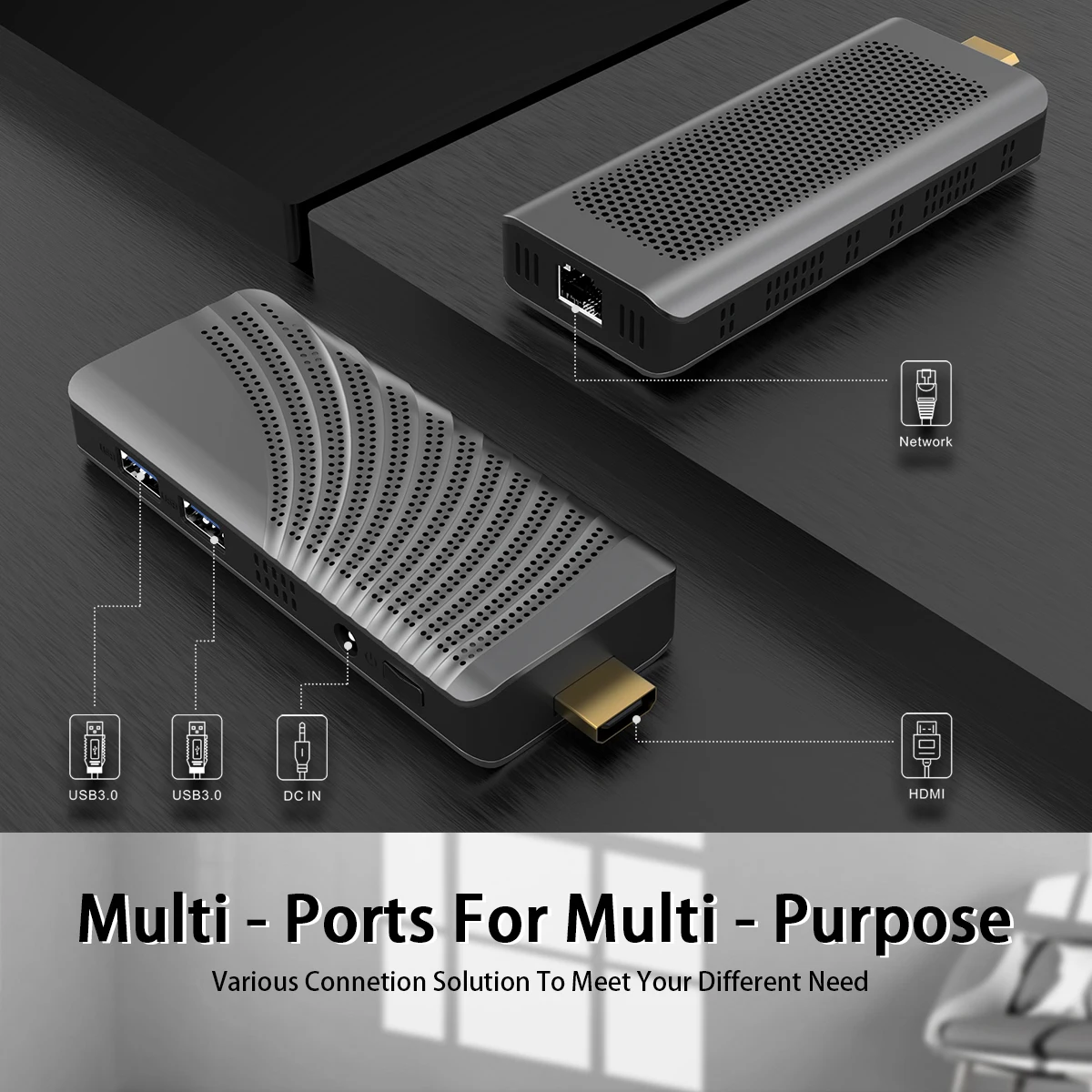

I/O | |||||||
Type | Spec. | Description | Optional | ||||
USB | USB2.0 | NO | |||||
USB | USB3.0 | USB3.0 Type-A*2 | |||||
TF | Expansion Memory | NO | |||||
HD | AV Output | 1 | |||||
VGA | Gigabyte Ethernet | No | |||||
RJ45 | Data Transmission | RJ45 x1 | |||||
Uart | Power Button | No | |||||
POWER | Power Button | x1 | |||||
DC IN | Power Supply Input | 5.5/2.1mm DC Jack x1 | |||||
Audio-in/out | Audio-in/out | NO | |||||
Antenna1 | FPC Antenna | WiFi 2.4+5G +BT x1 | |||||
Antenna2 | FPC Antenna | NO | |||||
SIM | Micro SIM | No | |||||
Software Configuration | |||||||
Type | Spec. | Description | Optional | ||||
OS | Version | Win10 Home/Win10 pro/Win10 IOT/ U-buntu | |||||
Environment | |||||||
Type | Spec. | Description | Optional | ||||
Environment | Working Temperature | 0~40℃ | |||||
Memory Temperature | -20~60℃ | ||||||
Humidity | 90% @ 40 °C (No Condensation) | ||||||
Accessory | |||||||
Type | Spec. | Description | Optional | ||||
Power Supply | Vesa | Input 100~240V 50/60Hz Output 12V/2.5A DC 5.5/2.1mm |
All product in stock,we will arrange the shipment after payment ASAP.
Payment:
TT, Western Union, MoneyGram, Trade Assurance(support credit card ),paypal
Company Profile
Shenzhen Miraco In-telligent Technology Company
Miraco,we specialize in manufacturing the Android TV box, our major products are TV box,wireless projector, mini PC and air mouse. Miraco was founded in 2017. Our company is made up of young, talented people who are knowledgeable in the latest technology and skills to implement and utilize these newest technologies.
Because we are a young company, we understand the need for a cutting-edge manufacturing department, talented and high-energy sales department, a diligent quality control department, and an up-to-the-minute technical support department. All our staff members are young, well educated, professionals.
As professionals looking to succeed, we don’t care only about the number of sales our company makes, but we also care about the after-sale service we offer our customers. We understand that long-term after-sales relationships are what keep customers coming back. And we also understand that after-sales service causes current customers to spread the word to others, creating new customers. We guarantee to provide the best in OEM and ODM, and technical support. Miraco, will give you miracles.
Reviews
Q1: What is the Warranty period for Miraco android smart tv box?
A: All products have a two years limited warranty. If there is no man-made problem, We will replace or repair the devices for you freely.
Q2:What's the delivery time?
A: We will send the goods out within 1-3 working days after we receive the payment.
Q3:Does Miraco have a factory?
A: Miraco is a professional android smart tv box high-tech enterprise. And our company is made up of young, talented people who are knowledgeable in the latest technology and skills to implement and utilize these newest technologies.
Q4:What’s lead time for an OEM?
A:About 15-17 working days after all OEM details are confirmed.
Q5:What payment form do we should accept?
A:We accept Western union, TT, Paypal, Trade assurance etc.
Q4: Does the device pre-install KDplayer?
A:Yes,all our boxes are preinstalled with the lastest KDplayer version etc,
and we can also help customers pre -install their own apps or add ons.
Q5: If all products are original?
A: All products we sell are original.
Q6:What’s your charger standard? Are they available in my country?
A: we can offer the plug which is available in your country.
We have EU plug, US plug, Uk plug and Au plug.
Q7:Do have technical instructions and technical support?
A:Yes,you can read the user manual carefully first when you have technical problems. If after reading the problems are still can not be solved. Welcome to contact us, our sales and our Technical department will help you work it out. And also we can offer the latest software if you need.
How to select expected items in the various & complex market?
How to Select = High Quality + Strict Quality Control + Aging Time + Prompt Shipping Time + Professional & Quick Reply + Risk Free
Miraco= Assured Quality + 5 Steps Strict QC + 48 Hours Aging Time + Ship in 24 Hours + Superior 99.8% Customer Satisfaction + 2 year Warranty + Easy Return Policy
OEM:
1.Logo printing on housing
2.Customize package
3.Software Customization: Booting image,UI,APP,Function and so on.
ODM:
1.PCBA design
2.Housing design
3.Software Customization: Booting image,UI,APP,Function and so on.
