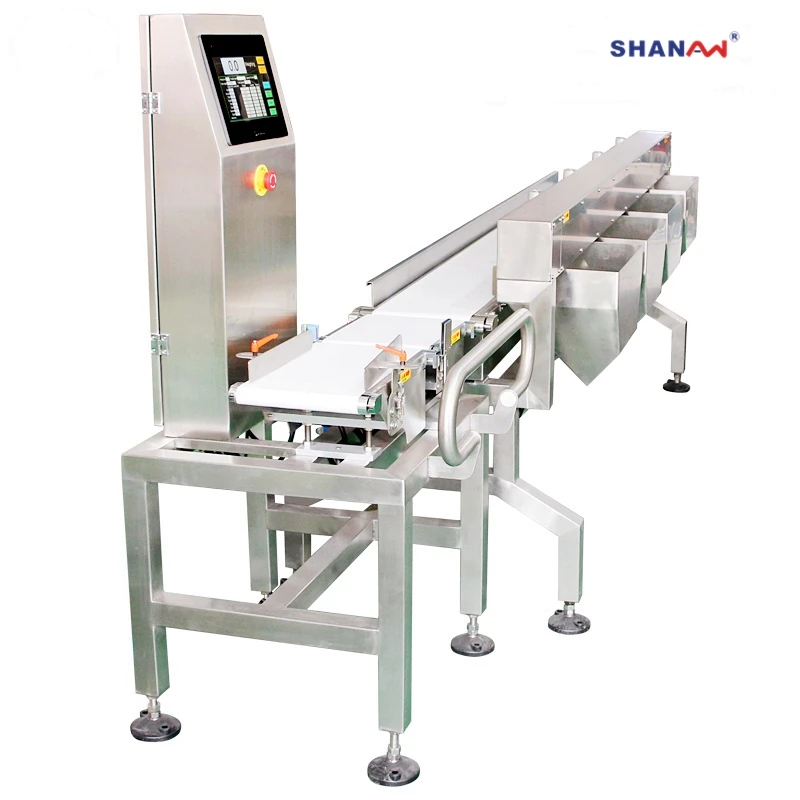

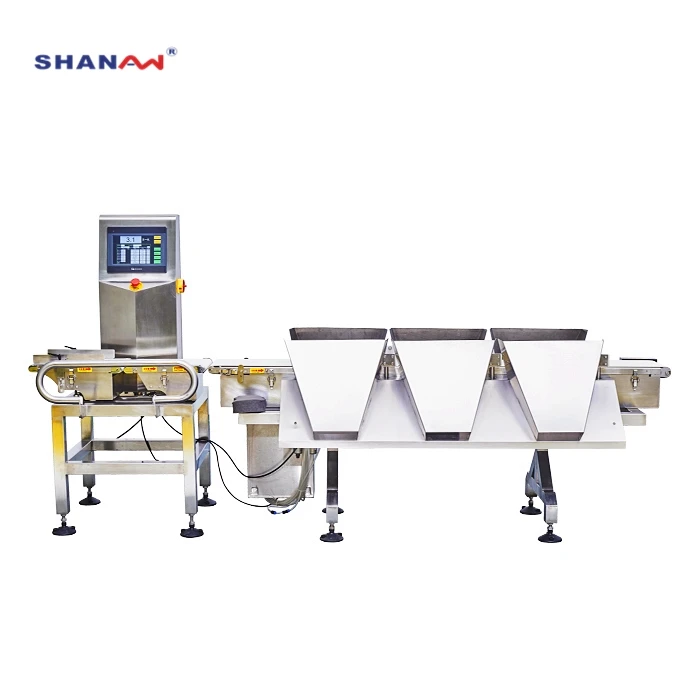

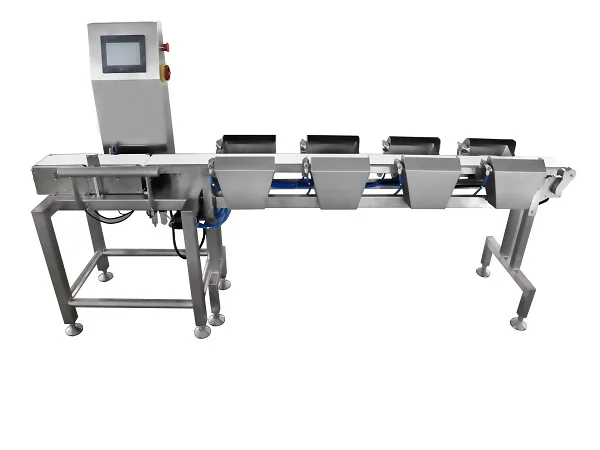

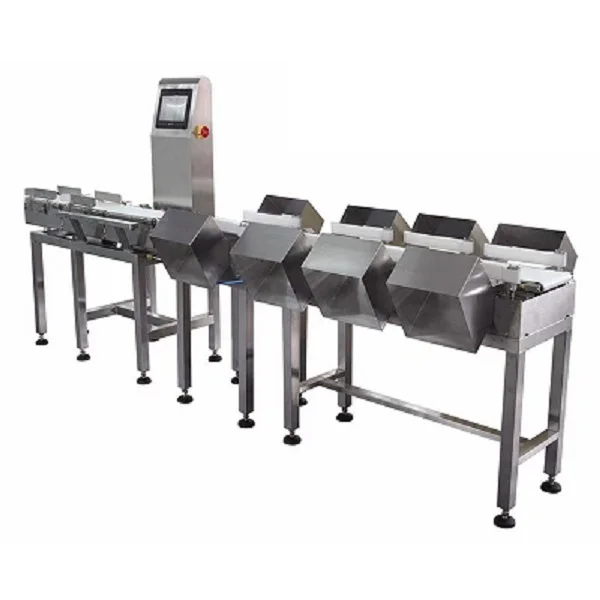

ACW-FXP4021F12 belt type multi-stage weight sorting scale
The belt type multi-stage sorting scale is also called a multi-stage sorting scale, and is a device for classifying the weighed product outlets according to different weight ranges.

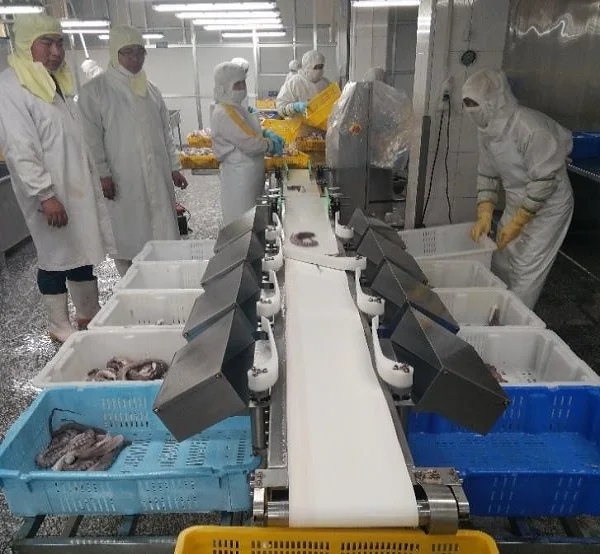

Scope of application: Aquatic product classification: all kinds of seafood products, fish, shrimp, crayfish, crab, sea cucumber, abalone. ... according to the weight range of products.
Classification of poultry and meat products:
chicken legs, chicken wings, chicken feet, duck legs, duck wings, visceral products, etc. are divided according to different weight intervals.
Weight classification of industrial products: weight classification of motor rotors, synthetic diamonds, auto parts and other products.
Features:
Multi-stage sorting, automatic weighing, instead of manual, improve efficiency; machine standardization structure and standardized human-machine interface, fully intelligent, user-friendly design; color human-machine interface, easy to use 3 minutes independent operation; It can store a variety of formulas and replace the product specifications. The modular structure makes the machine easy to install, easy to maintain, easy to clean, manual or automatic zero and dynamic zero tracking. The inverter can be controlled by frequency.
product Specifications:
|
Model |
SACW-FXP4021F12 |
|
power |
Single-phase AC200V~240V(110V/380Vcustomized) |
|
rated power |
0.5KW |
|
Single weighing range |
≤200g |
|
Highest sorting accuracy |
±0.3g |
|
Minimum scale |
0.1g |
|
transfer speed |
40~60m/min |
|
Maximum speed |
80 pcs/min |
|
Detect item size |
≤200mm*75mm*48mm |
|
Weighing conveyor belt size |
400mm(L)*210mm(W) |
|
Equipment size |
3245mm(L)*1056mm(W)*1355mm(H) |
|
Elimination method |
Pole pusher, air blow, etc. |
|
Control System |
High speed A/D sampling controller |
|
Preset product number |
2000pscs |
|
Conveying direction |
Facing the machine, left to right |
|
External air supply |
0.6-1Mpa |
|
Pneumatic interface |
Φ8mm |
|
working environment |
temperature: 0℃~40℃,humidity:30%~95% |
|
Body material |
Stainless steel 304 polishing |
|
Operation screen display |
Chinese, English (Turkey, Spanish, etc. can be ordered) |
|
Other standard equipment |
Windshield (colorless and transparent), calibration weight |
|
Belt surface height from the ground |
650mm~750mm(customizable) |
|
Protection level |
Protection level meets IP-65 international standards |
|
Remarks:The accuracy of the detection speed meter is slightly different depending on the size of the product being tested and the working environment in which the equipment is operated. |
|
