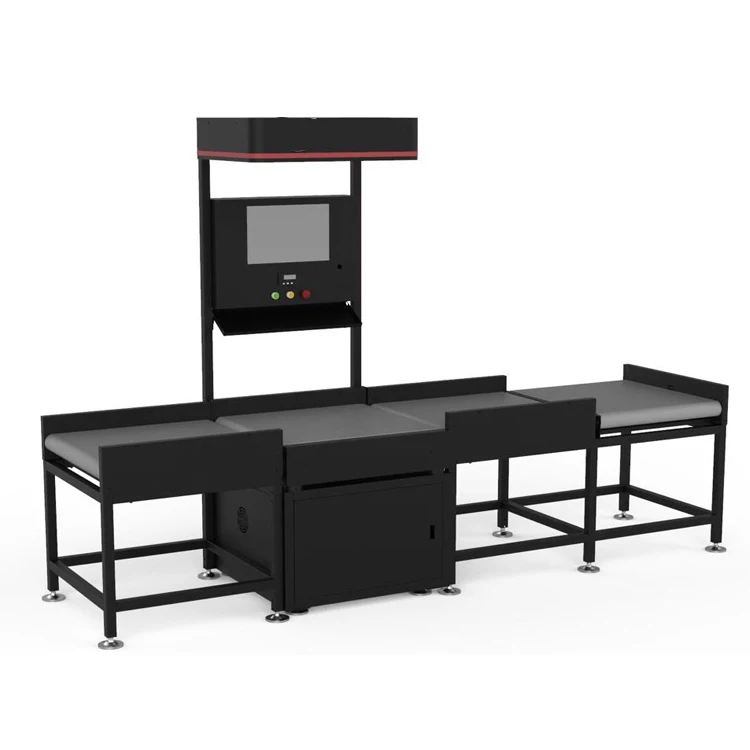

Small parcels DWS system weighing scanning sorting machine
The small parcel DWS equipment with four sorting destinations is an equipment system that reads the barcode,weight and dimension information and sorts the parcels or packages to four destinations based on barcode or weight. After DWS data information completed, the parcels or packages can be passed on and sorted in four directions automatically.The collected data and photos can be stored in local disk and uploaded to the mailing management system. This DWS equipment is high effictive in price. It largely reduces the labor to record the barcode and weight and to separate the parcels or parckages. Highly improved the warehousing efficiency for courier companies and e-commerce warehousing center.Features:
2. Static Weighing
3. Photo capturing and data storage
4. Packages are sorting to four exit stations
4. Packages are sorting to four exit stations
5. Barcode scanning rate ≥99.8%
6. Scanning efficiency: 1500-3600pcs/h
7. Weighing accuracy: ±10g
8. Picture query available
9. Real-time uploading data and image to users' management system
10. It's available to add dimension measuring function
Parameters
Description | Specifications |
Industrial computer | I5 intel |
Display | 19.5 inches LCD |
Barcode Camera | 6 million pixels industrial camera |
Keyboard and mouse | Wireless |
Dimension camera | Dual 3D camera |
Lens | 12mm |
Belt conveying speed | 50-90m/min |
conveyor motor | 350-450W |
Weighing accuracy | ±10g |
Weighing range | 0.04-30kg |
Dimension range | 100*100*50mm~500*500*500mm |
Dimension accuracy | ±10/±15mm |
Scanning efficiency | 1200~1800 pieces |
Recognition rate | 99.9% (Normal packages) |
Software interface | http、TCP、RS485 |
Application Software | SENAD DWS System |
Weighing mode | Static weighing |
power supply | Customizable |
Remote diagnosis | yes |
Picture capturing | yes |
Overall size | L650*W775*H2800mm |
Readable barcodes | Code 128, Code 39, EAN 8, EAN 13, UPC-A, ITF25, Codebar, QR code, DM code(ECC200) |
Functions | Read barcodes, weight, L*W*H dimensions, capture photos, convey at bi-directions, system connection |
Product Details
__________
__________
The operation interface can be customized and designed according to language requirements, clearly displaying the detailed information of each package, including weight and size, and then performing automatic sorting operations to improve work efficiency
__________
Clear record interface
__________
The operation interface displays the size, weight and bar code information, the language can be customized, docking with the customer system, and automatically outputting the form information
